      At PGConf India 2025, Shlok Kyal shared strategies for upgrading PostgreSQL replication clusters with no disruption to operations—highlighting examples and the evolving capabilities of logical replication.

      Upgrading a PostgreSQL replication cluster has historically involved downtime or complex workarounds, especially when using physical replication. With PostgreSQL 17, the upgrade process becomes more flexible thanks to major improvements in logical replication. In my session, I talked about how these changes make it significantly easier to perform rolling upgrades with minimal or no service disruption, even in production environments.

      I discussed upgrading PostgreSQL replication clusters and new features like pg_createsubscriber to minimize downtime, preserve replication slots and subscription states.

      Let's dive into the topic

      Below, you'll find the slides from my presentation at PGConf India 2025.



      Side by sideClick to view the slides side by side
      Top to bottomClick to view the slides in vertical orientation

      How to upgrade replication clusters without downtime

      Shlok Kumar Kyal

      Application Developer

      Fujitsu

      Agenda

      • Introduction
      • Upgrading replication clusters until PostgreSQL 16
      • New Logical Replication Features in PostgreSQL
      • Upgrading replication clusters until PostgreSQL 17

      Part 1

      Introduction

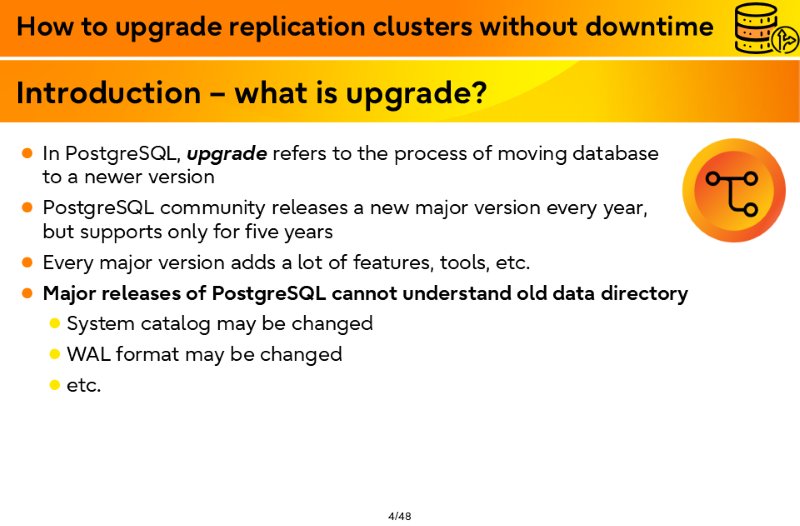

      Introduction – what is upgrade?

      • In PostgreSQL, upgrade refers to the process of moving database to a newer version
      • The PostgreSQL community releases a new major version every year, but supports only for five years
      • Every major version adds a lot of features, tools, etc.
      • Major releases of PostgreSQL cannot understand old data directory
        • System catalog may be changed
        • WAL format may be changed
        • etc.

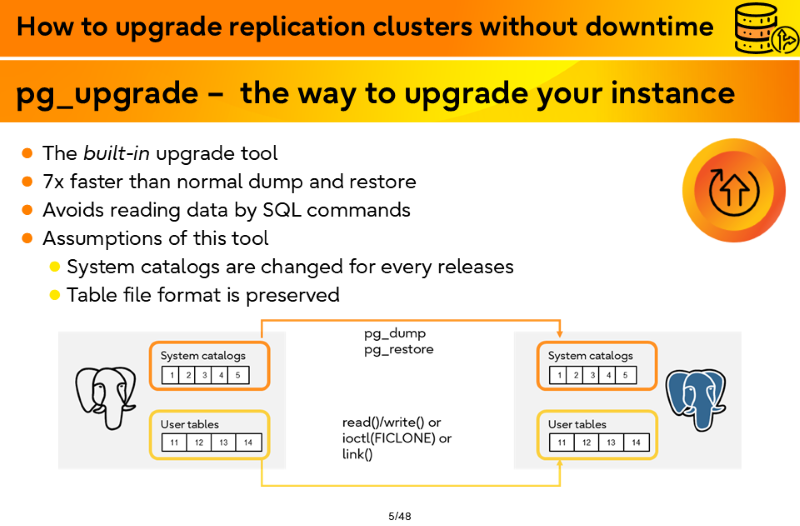

      pg_upgrade – the way to upgrade your instance

      • The built-in upgrade tool
      • 7x faster than normal dump and restore
      • Avoids reading data by SQL commands
      • Assumptions of this tool
        • System catalogs are changed for every releases
        • Table file format is preserved

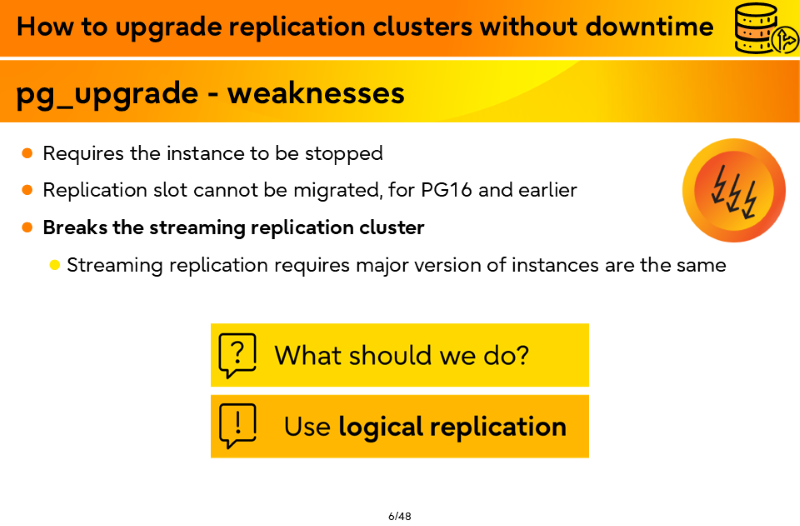

      pg_upgrade - weaknesses

      • Requires the instance to be stopped
      • Replication slot cannot be migrated, for PG16 and earlier
      • Breaks the streaming replication cluster
        • Streaming replication requires major version of instances are the same
      What should we do?
      Use logical replication

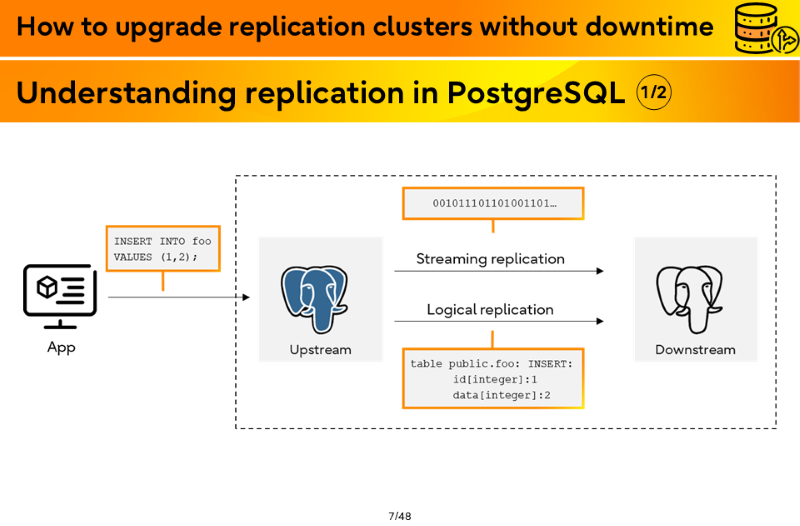

      Understanding replication in PostgreSQL

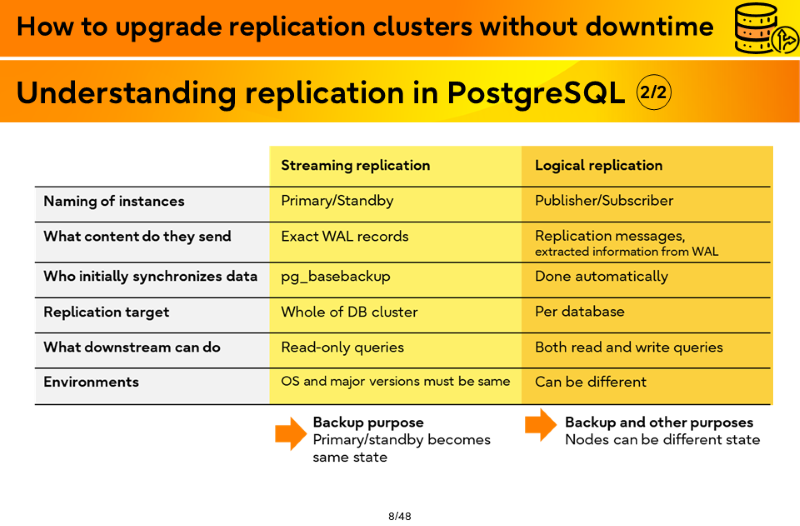

      Understanding replication in PostgreSQL

        Streaming replication Logical replication
      Naming of instances Primary/Standby Publisher/Subscriber
      What content they send Exact WAL records Replication messages - extracted information from WAL
      Who initially synchronizes data pg_basebackup Done automatically
      Replication target Whole of database cluster Per database
      What downstream can do Read-only queries Both read and write queries
      Environments OS and major versions must be same Can be different

      Streaming replication: Backup purpose - Primary/standby becomes same state

      Logical replication: Backup and other purposes - Nodes can be different state

      Logical replication - Usage

      • The publication must be defined on an upstream node
        postgres=# CREATE PUBLICATION pub FOR ALL TABLES;
        CREATE PUBLICATION
        postgres=# SELECT * FROM pg_publication;
          oid  | pubname | pubowner | puballtables | pubinsert | pubupdate | pubdelete | pubtruncate | pubviaroot
        -------+---------+----------+--------------+-----------+-----------+-----------+-------------+------------
         16396 | pub     |       10 | t            | t         | t         | t         | t           | f
        (1 row)
      • Then a downstream node subscription subscribes to the publication
        postgres=# CREATE SUBSCRIPTION sub CONNECTION 'user=postgres dbname=postgres port=5431' PUBLICATION pub;
        NOTICE:  created replication slot "sub" on publisher
        CREATE SUBSCRIPTION
        postgres=# SELECT oid, subdbid, subname, subconninfo FROM pg_subscription;
          oid  | subdbid | subname |               subconninfo
        -------+---------+---------+-----------------------------------------
         16402 |       5 | sub     | user=postgres dbname=postgres port=5431
        (1 row)

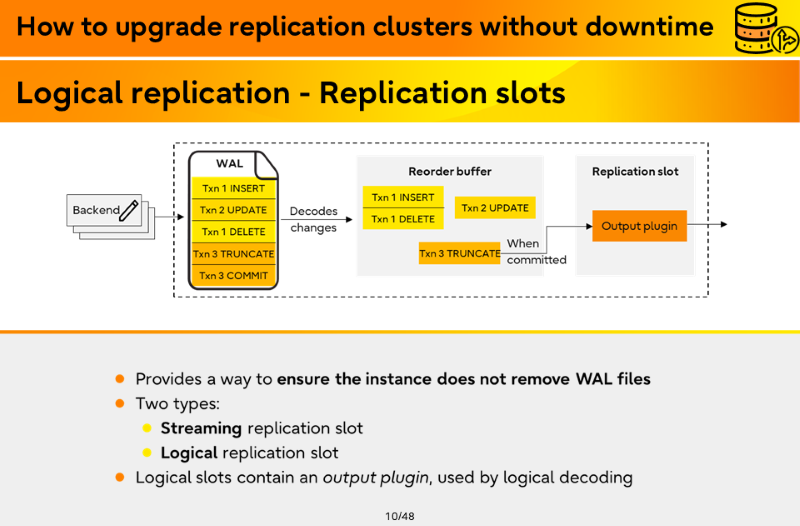

      Logical replication - Replication slots

      • Provides a way to ensure the instance does not remove WAL files
      • Two types:
        • Streaming replication slot
        • Logical replication slot
      • Logical slots contain an output plugin, used by logical decoding

      Part 2

      Upgrading replication clusters till PostgreSQL 16

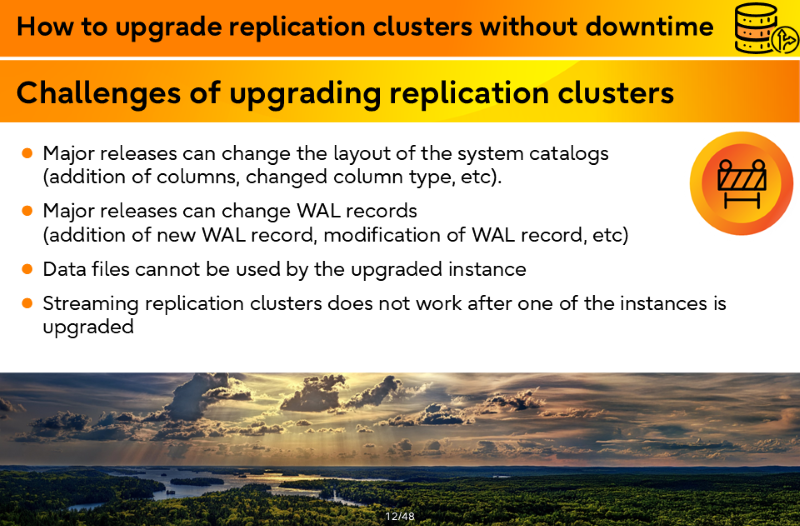

      Challenges of upgrading replication clusters

      • Major releases can change the layout of the system catalogs
        (addition of columns, changed column type, etc).
      • Major releases can change WAL records
        (addition of new WAL record, modification of WAL record, etc)
      • Data files cannot be used by the upgraded instance
      • Streaming replication clusters does not work after one of the instances is upgraded

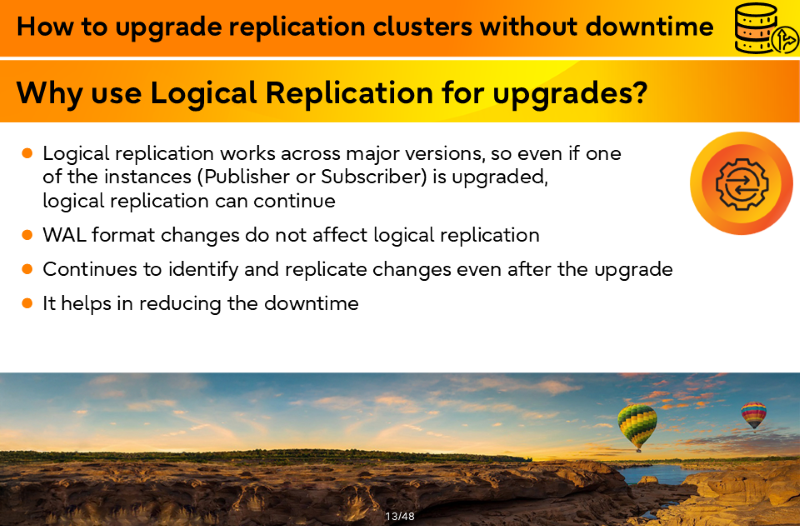

      Why use Logical Replication for upgrades?

      • Logical replication works across major versions, so even if one of the instances (Publisher or Subscriber) is upgraded, logical replication can continue
      • WAL format changes do not affect logical replication
      • Continues to identify and replicate changes even after the upgrade
      • It helps in reducing the downtime

      Steps to upgrade streaming replication cluster (PostgreSQL 16)

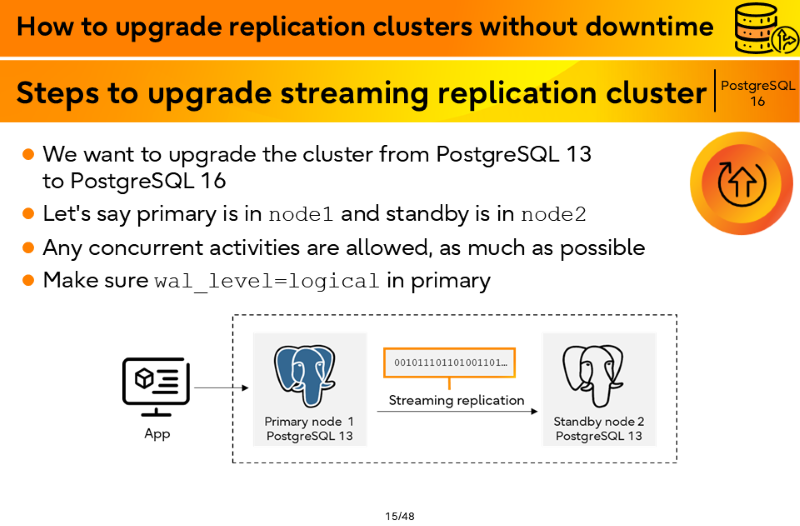

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      • We want to upgrade the cluster from PostgreSQL 13 to PostgreSQL 16
      • Let's say primary is in node1 and standby is in node2
      • Any concurrent activities are allowed, as much as possible
      • Make sure wal_level=logical in primary

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      Here we want to upgrade clusters from PostgreSQL 13 to PostgreSQL 16

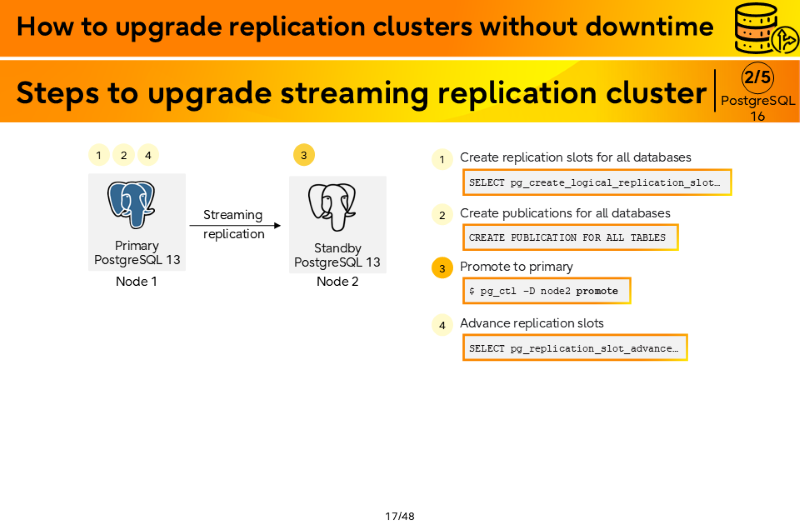

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      1. Create replication slots for all databases
        SELECT pg_create_logical_replication_slot…
      2. Create publications for all databases
        CREATE PUBLICATION FOR ALL TABLES
      3. Promote to primary
        $ pg_ctl –D node2 promote
      4. Advance replication slots
        SELECT pg_replication_slot_advance…

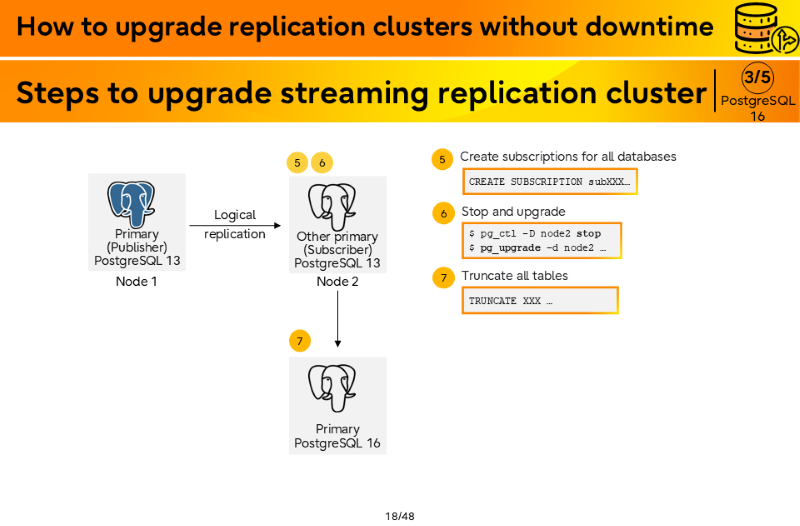

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      1. Create subscriptions for all databases
        CREATE SUBSCRIPTION subXXX…
      2. Stop and upgrade
        $ pg_ctl –D node2 stop
        $ pg_upgrade –d node2 …
      3. Truncate all tables
        TRUNCATE XXX …

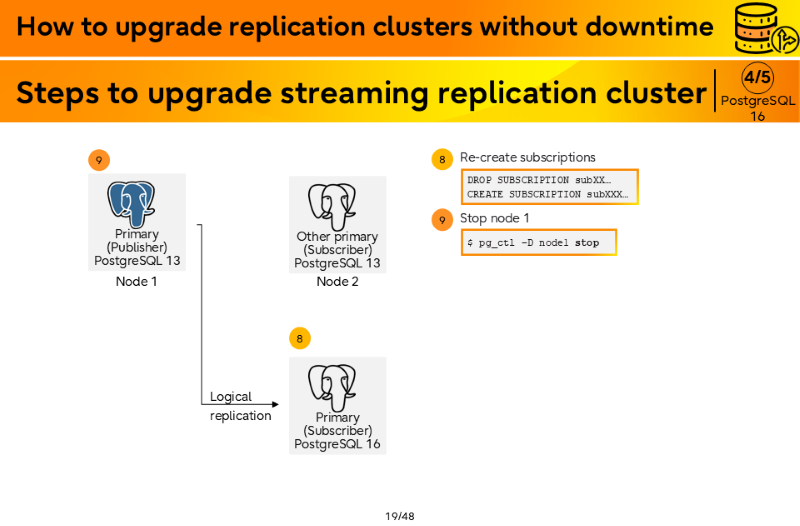

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      1. Re-create subscriptions
        DROP SUBSCRIPTION subXX…
        CREATE SUBSCRIPTION subXXX…
      2. Stop node 1
        $ pg_ctl –D node1 stop

      Steps to upgrade streaming replication cluster | PostgreSQL 16

      1. Run pg_basebackup
        $ pg_basebackup –D node1_upgraded –R…
      2. Drop subscriptions
        DROP SUBSCRIPTION subXX…

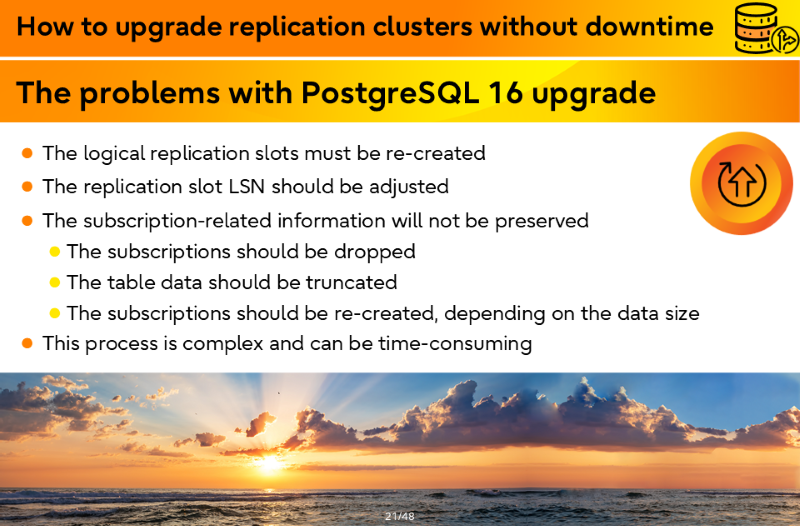

      The problems with PostgreSQL 16 upgrade

      • The logical replication slots must be re-created
      • The replication slot LSN should be adjusted
      • The subscription-related information will not be preserved
        • The subscriptions should be dropped
        • The table data should be truncated
        • The subscriptions should be re-created, depending on the data size
      • This process is complex and can be time-consuming

      Steps to upgrade logical replication cluster (PostgreSQL 16)

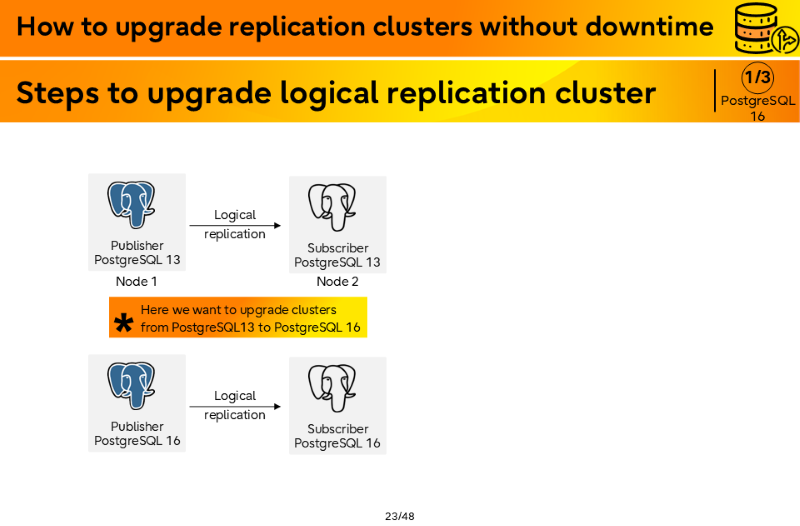

      Steps to upgrade logical replication cluster | PostgreSQL 16

      Here we want to upgrade clusters from PostgreSQL 13 to PostgreSQL 16

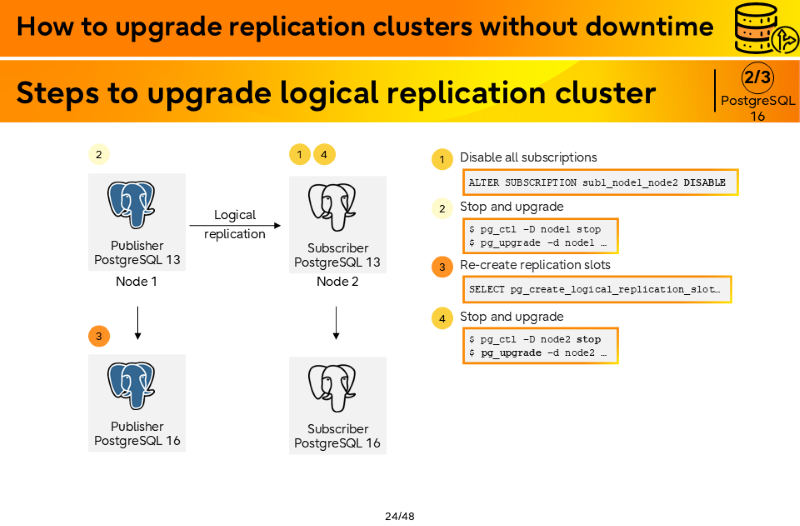

      Steps to upgrade logical replication cluster | PostgreSQL 16

      1. Disable all subscriptions
        ALTER SUBSCRIPTION sub1_node1_node2 DISABLE
      2. Stop and upgrade
        $ pg_ctl –D node1 stop
        $ pg_upgrade –d node1 …
      3. Re-create and advance replication slots
        SELECT pg_create_logical_replication_slot…
        SELECT pg_replication_slot_advance…
      4. Stop and upgrade
        $ pg_ctl –D node2 stop
        $ pg_upgrade –d node2 …

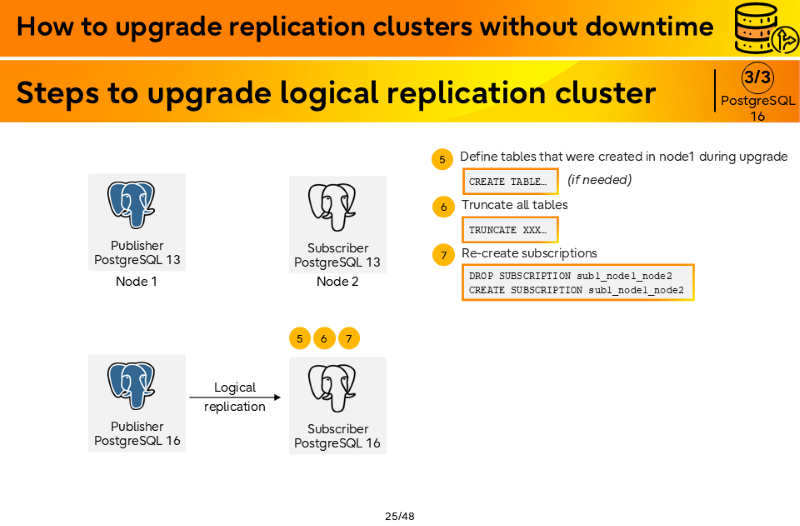

      Steps to upgrade logical replication cluster | PostgreSQL 16

      1. Define tables that were created in node1 during upgrade
        CREATE TABLE…
      2. Truncate all tables
        TRUNCATE XXX…
      3. Re-create subscriptions
        DROP SUBSCRIPTION sub1_node1_node2
        CREATE SUBSCRIPTION sub1_node1_node2

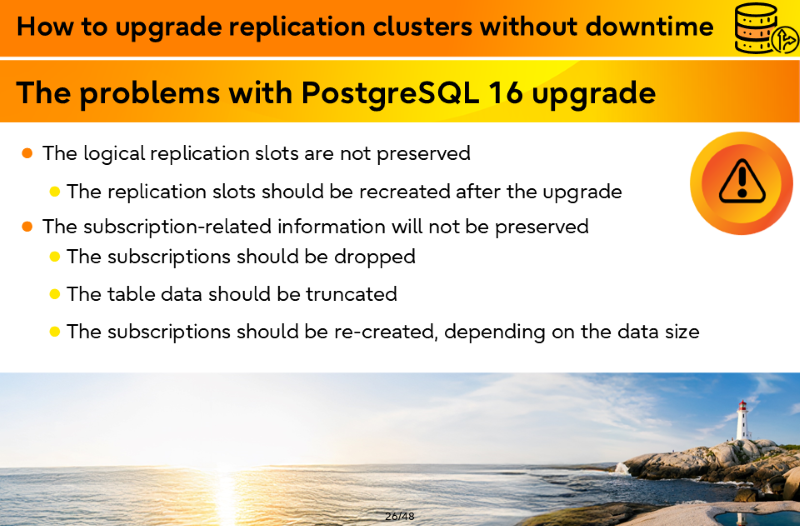

      The problems with PostgreSQL 16 upgrade

      • The logical replication slots are not preserved
        • The replication slots should be recreated after the upgrade
      • The subscription-related information will not be preserved
        • The subscriptions should be dropped
        • The table data should be truncated
        • The subscriptions should be re-created, depending on the data size

      Part 3

      New Logical Replication features in PostgreSQL 17

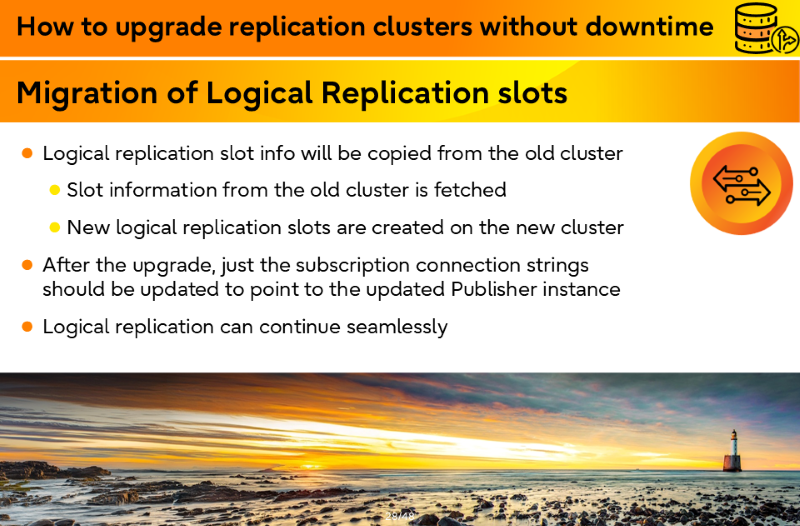

      Migration of Logical Replication slots

      • Logical replication slot info will be copied from the old cluster
        • Slot information from the old cluster is fetched
        • New logical replication slots are created on the new cluster
      • After the upgrade, just the subscription connection strings should be updated to point to the updated Publisher instance
      • Logical replication can continue seamlessly

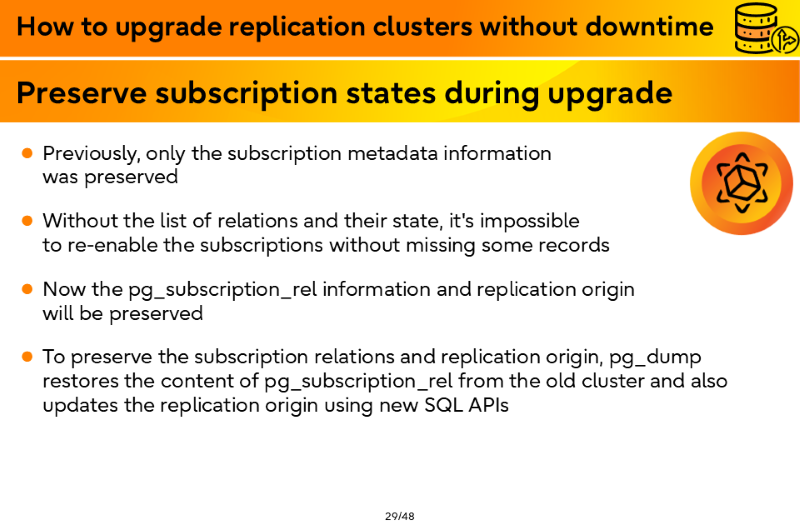

      Preserve subscription states during upgrade

      • Previously, only the subscription metadata information was preserved
      • Without the list of relations and their state, it's impossible to re-enable the subscriptions without missing some records
      • Now the pg_subscription_rel information and replication origin will be preserved
      • To preserve the subscription relations and replication origin, pg_dump restores the content of pg_subscription_rel from the old cluster and also updates the replication origin using new SQL APIs

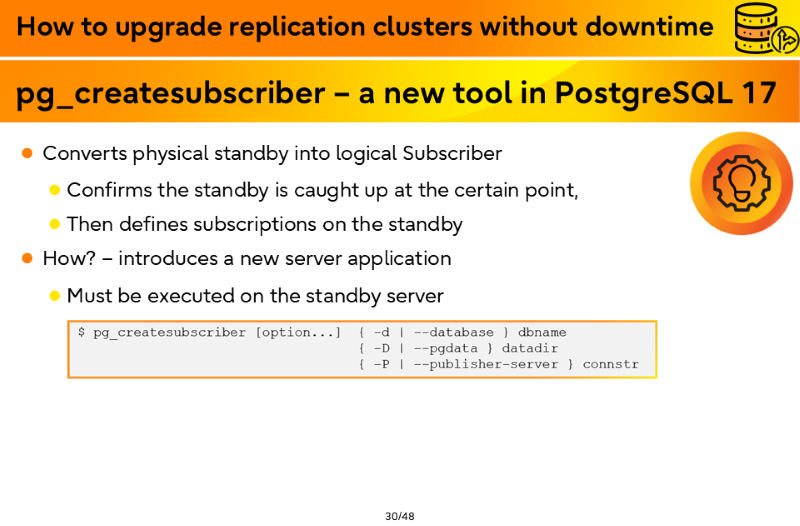

      pg_createsubscriber – a new tool in PostgreSQL 17

      • Converts physical standby into logical Subscriber
        • Confirms the standby is caught up at the certain point,
        • Then defines subscriptions on the standby
      • How? – introduces a new server application
        • Must be executed on the standby server
          $ pg_createsubscriber [option...] { -d | --database } dbname
                                            { -D | --pgdata } datadir
                                            { -P | --publisher-server } connstr

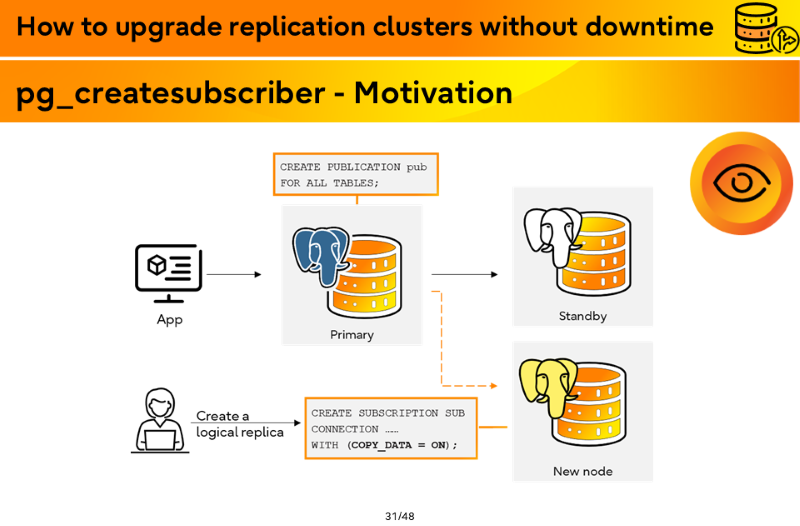

      pg_createsubscriber - Motivation

      • On primary:
        CREATE PUBLICATION pub FOR ALL TABLES;
      • To create a logical replica:
        CREATE SUBSCRIPTION SUB CONNECTION …… WITH (COPY_DATA = ON);

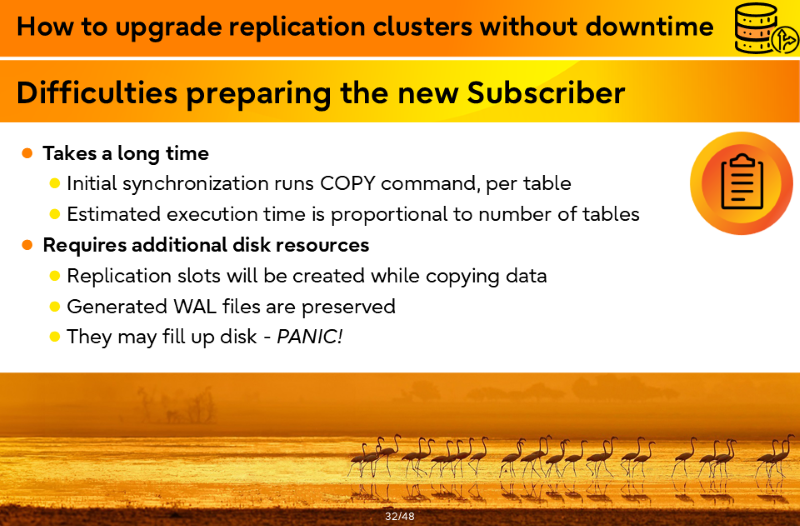

      Difficulties preparing the new Subscriber

      • Takes a long time
        • Initial synchronization runs COPY command, per table
        • Estimated execution time is proportional to number of tables
      • Requires additional disk resources
        • Replication slots will be created while copying data
        • Generated WAL files are preserved
        • They may fill up disk - PANIC!

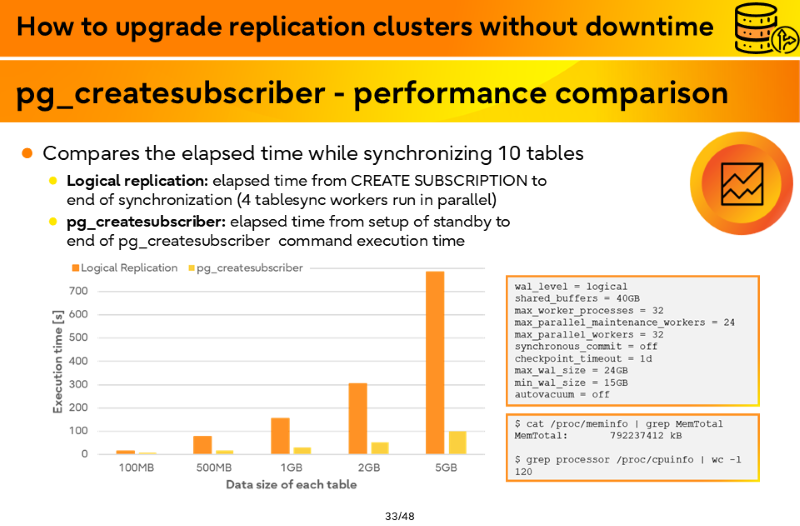

      pg_createsubscriber - performance comparison

      • Compares the elapsed time while synchronizing 10 tables
        • Logical replication: elapsed time from CREATE SUBSCRIPTION to  end of synchronization (4 tablesync workers run in parallel)
        • pg_createsubscriber: elapsed time from setup of standby to  end of pg_createsubscriber  command execution time

      wal_level = logical
      shared_buffers = 40GB
      max_worker_processes = 32
      max_parallel_maintenance_workers = 24
      max_parallel_workers = 32
      synchronous_commit = off
      checkpoint_timeout = 1d
      max_wal_size = 24GB
      min_wal_size = 15GB
      autovacuum = off
      $ cat /proc/meminfo | grep MemTotal
      MemTotal:       792237412 kB

      $ grep processor /proc/cpuinfo | wc -l
      120

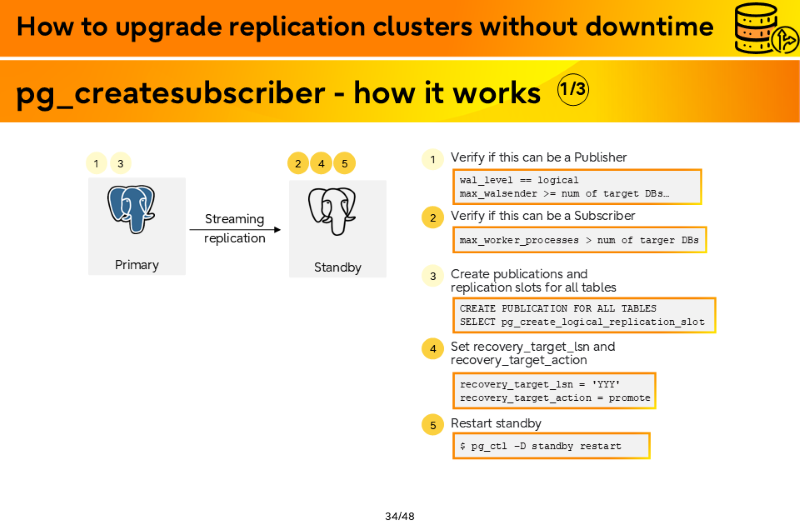

      pg_createsubscriber - how it works

      1. Verify if this can be a Publisher
        wal_level == logical
        max_walsender >= num of target DBs…
      2. Verify if this can be a Subscriber
        max_worker_processes > num of targer DBs
      3. Create publications and replication slots for all tables
        CREATE PUBLICATION FOR ALL TABLES
        SELECT pg_create_logical_replication_slot
      4. Set recovery_target_lsn and recovery_target_action
        recovery_target_lsn = 'YYY'
        recovery_target_action = promote
      5. Restart standby
        $ pg_ctl –D standby restart

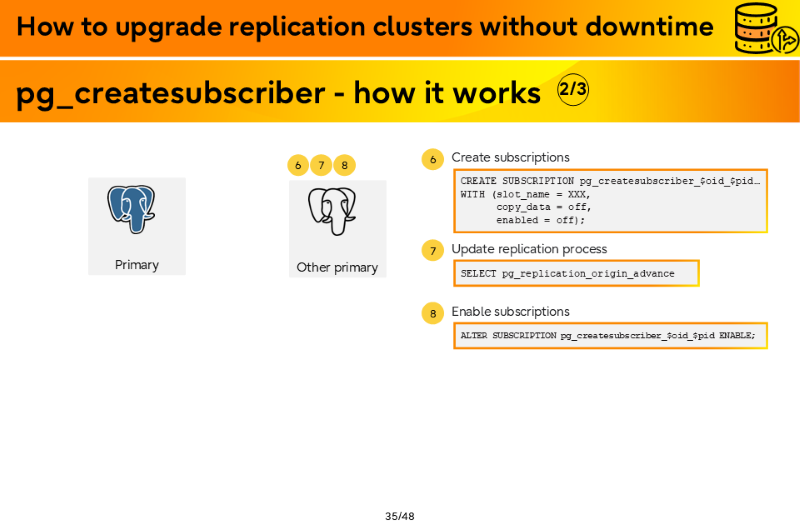

      pg_createsubscriber - how it works

      1. Create subscriptions
        CREATE SUBSCRIPTION pg_createsubscriber_$oid_$pid…
        WITH (slot_name = XXX, copy_data = off, enabled = off);
      2. Update replication process
        SELECT pg_replication_origin_advance
      3. Enable subscriptions
        ALTER SUBSCRIPTION pg_createsubscriber_$oid_$pid ENABLE;

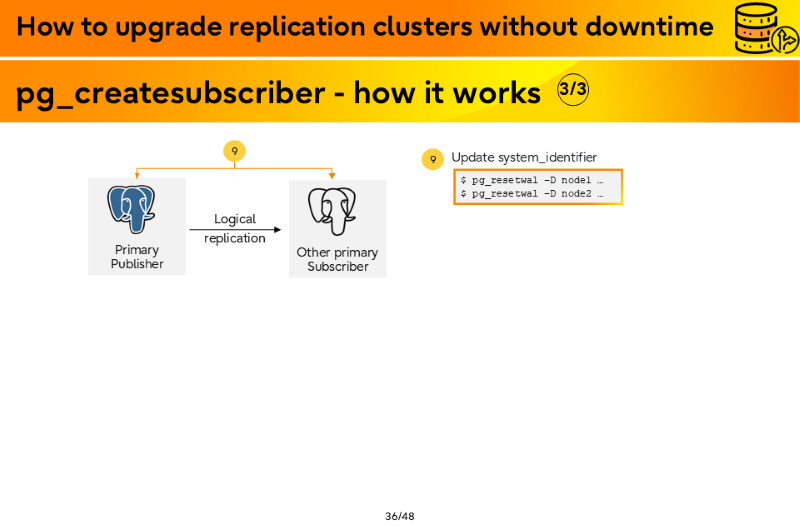

      pg_createsubscriber - how it works

      1. Update system_identifier
        $ pg_resetwal –D node1 …
        $ pg_resetwal –D node2 …

      Part 4

      Upgrading clusters from PostgreSQL 17 and onwards

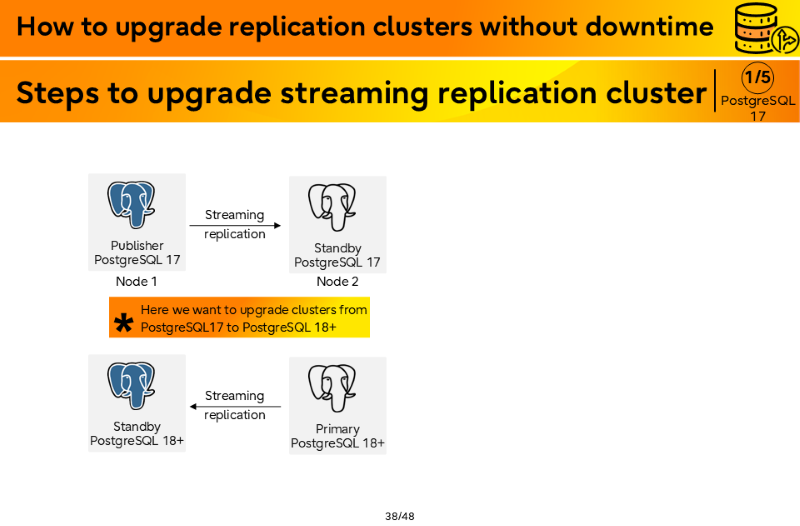

      Steps to upgrade streaming replication cluster | PostgreSQL 17

      Here we want to upgrade clusters from PostgreSQL 17 to PostgreSQL 18+

      Steps to upgrade streaming replication cluster | PostgreSQL 17

      1. Create logical replica
        $ pg_createsubscriber –D node2 …

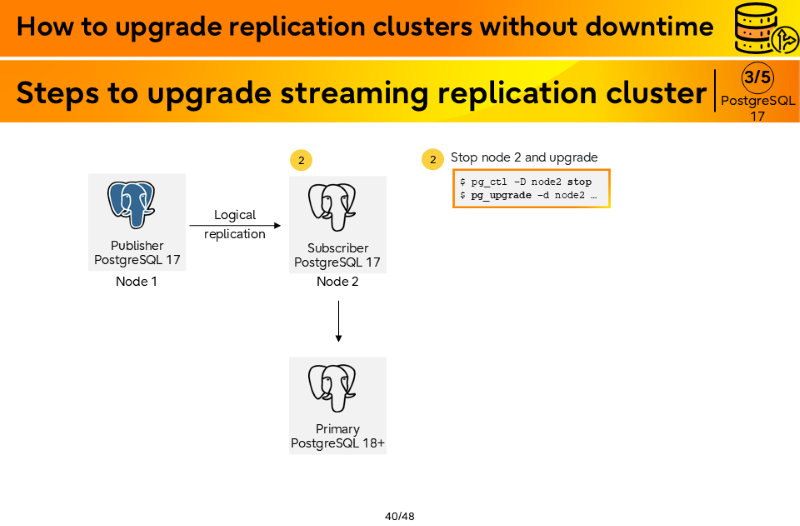

      Steps to upgrade streaming replication cluster | PostgreSQL 17

      1. Stop node 2 and upgrade
        $ pg_ctl –D node2 stop
        $ pg_upgrade –d node2 …

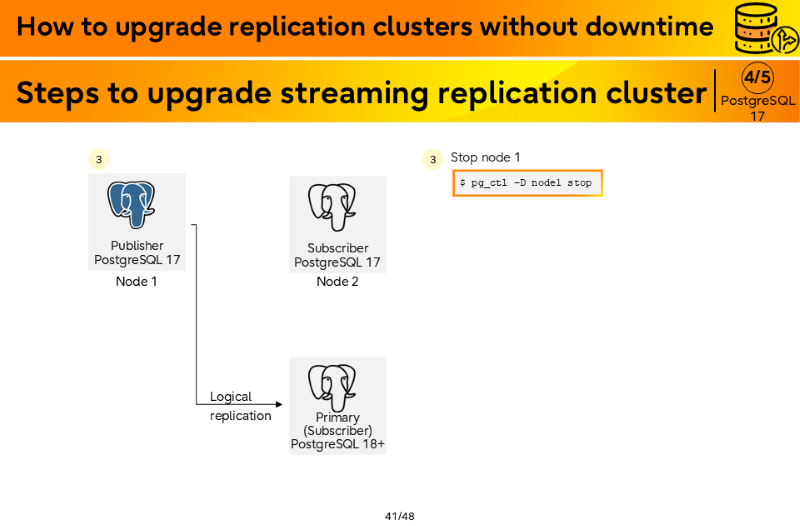

      Steps to upgrade streaming replication cluster | PostgreSQL 17

      1. Stop node 1
        $ pg_ctl –D node1 stop

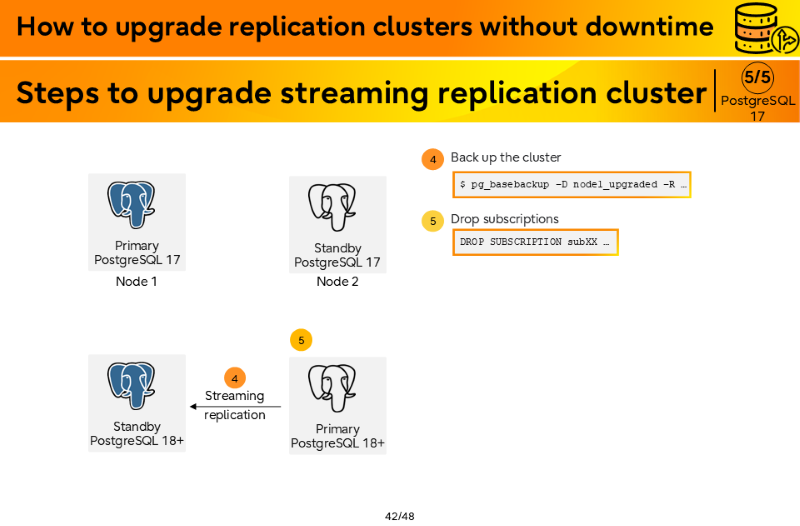

      Steps to upgrade streaming replication cluster | PostgreSQL 17

      1. Back up the cluster
        $ pg_basebackup –D node1_upgraded –R …
      2. Drop subscriptions
        DROP SUBSCRIPTION subXX …

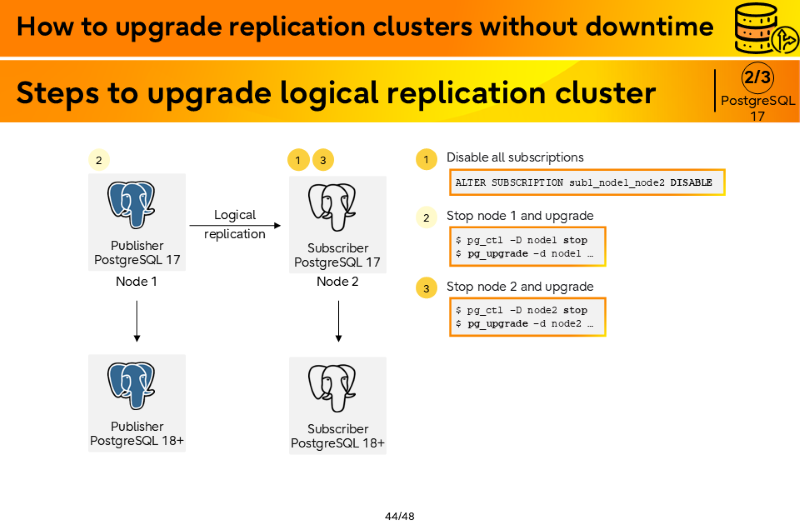

      Steps to upgrade logical replication cluster | PostgreSQL 17

      Here we want to upgrade clusters from PostgreSQL 17 to PostgreSQL 18+

      Steps to upgrade logical replication cluster | PostgreSQL 17

      1. Disable all subscriptions
        ALTER SUBSCRIPTION sub1_node1_node2 DISABLE
      2. Stop node 1 and upgrade
        $ pg_ctl –D node1 stop
        $ pg_upgrade –d node1 …
      3. Stop node 2 and upgrade
        $ pg_ctl –D node2 stop
        $ pg_upgrade –d node2 …

      Steps to upgrade logical replication cluster | PostgreSQL 17

      1. Define tables that were created in node1 during upgrade
        CREATE TABLE…
      2. Enable and refresh subscriptions for all tables
        ALTER SUBSCRIPTIONS sub_node1_node2 ENABLE
        ALTER SUBSCRIPTIONS sub_node1_node2 REFRESH PUBLICATION

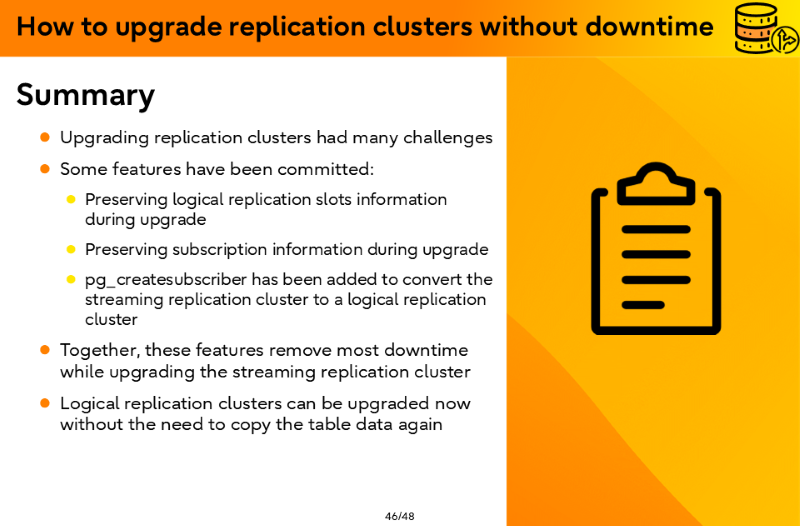

      Summary

      • Upgrading replication clusters had many challenges
      • Some features have been committed:
        • Preserving logical replication slots information during upgrade
        • Preserving subscription information during upgrade
        • pg_createsubscriber has been added to convert the streaming replication cluster to a logical replication cluster
      • Together, these features remove most downtime while upgrading the streaming replication cluster
      • Logical replication clusters can be upgraded now without the need to copy the table data again

      Thank you

      Shlok Kyal

      Associate Application Developer

      Fujitsu

      linkedin.com/in/shlokkyal

      Conclusion

      ill-people-using-laptop-around-shield-and-gear-and-magnifying-glass-01-variation-04Upgrading PostgreSQL replication clusters, historically a complex process fraught with challenges such as re-creating logical replication slots and re-initializing subscriptions for major version changes, has seen significant advancements. While earlier versions up to PostgreSQL 16 required intricate manual steps that could lead to considerable downtime, the introduction of new logical replication features in PostgreSQL 17 and beyond has streamlined this critical operation.

      Key improvements like the automatic migration of logical replication slots, preservation of subscription states during upgrades, and the powerful pg_createsubscriber tool now enable near-zero-downtime upgrades for streaming replication clusters and eliminate the need for redundant data copying in logical replication scenarios.

      These innovations collectively ensure a more seamless, efficient, and robust upgrade path for PostgreSQL users, solidifying its reliability for mission-critical environments, ensuring continuous service, maintaining business continuity, enhancing user experience, safeguarding revenue, and protecting brand reputation.



      Topics: PostgreSQL, Logical replication, PostgreSQL event, Database replication, PGConf India

      Receive our blog

      Search by topic

      see all >
      Shlok Kyal
      Application Developer, Fujitsu OSS PostgreSQL team
      Shlok Kyal is an Associate Application Developer at Fujitsu, where he contributes to the open-source PostgreSQL team, focusing on logical replication.

      Before joining Fujitsu, Shlok served as a Software Development Engineer at Amazon, gaining valuable experience in database internals and Transact-SQL (T-SQL). Beyond his professional endeavors, Shlok actively contributes to improving the performance of Babelfish, demonstrating his commitment to community-driven open source development.
      Our Migration Portal helps you assess the effort required to move to the enterprise-built version of Postgres - Fujitsu Enterprise Postgres.
      We also have a series of technical articles for PostgreSQL enthusiasts of all stripes, with tips and how-to's.



      Explore PostgreSQL Insider >
      Subscribe to be notified of future blog posts
      If you would like to be notified of my next blog posts and other PostgreSQL-related articles, fill the form here.

      Read our latest blogs

      Read our most recent articles regarding all aspects of PostgreSQL and Fujitsu Enterprise Postgres.

      Receive our blog

      Fill the form to receive notifications of future posts

      Search by topic

      see all >
